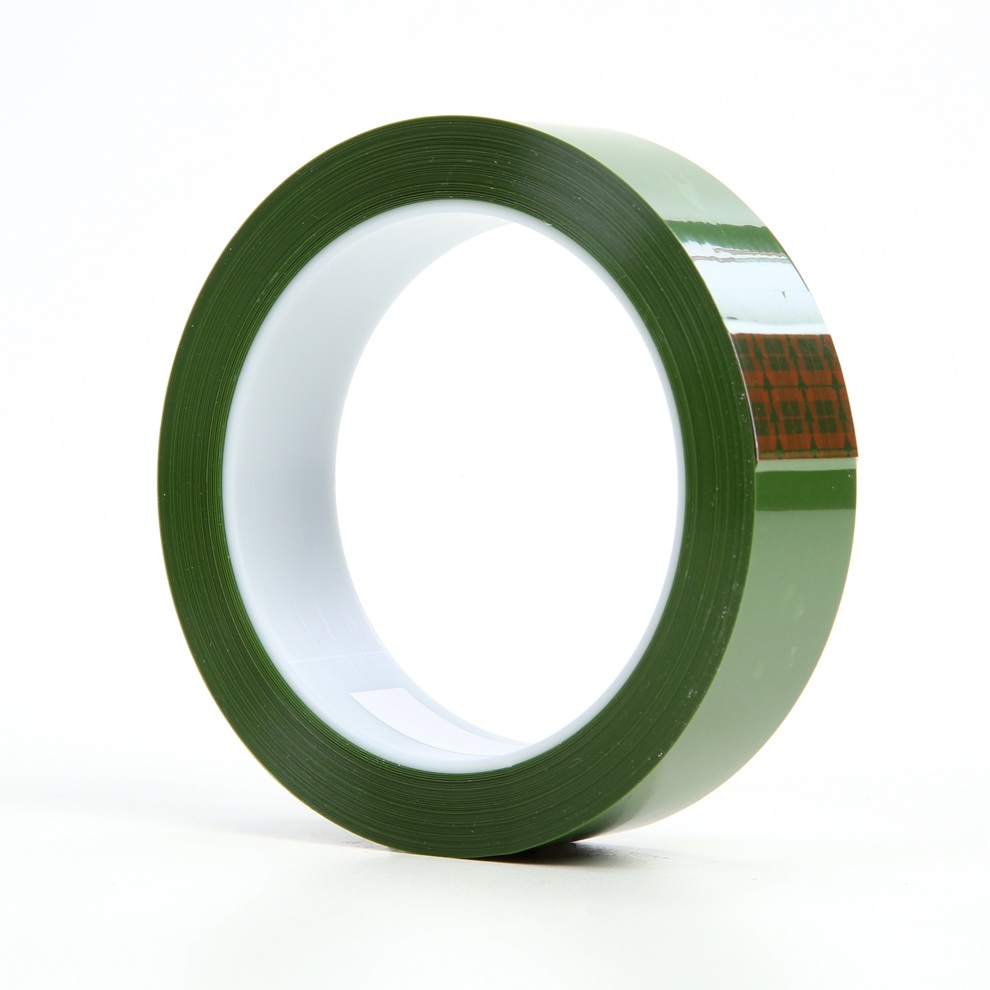

3M™ Polyester Tape 8403, 2.3 mil (0.06 mm) polyester film tape with green pigmented silicone adhesive.
3M™ Polyester Tape 8403, masking for high temperature applications, adheres well to silicone coated surfaces. The green color and silicone adhesive make for easier identification and application when splicing silicone treated paper.
Discounted Price
Regular Price
Per piece/roll (excl. VAT)
3M™ Polyester Tape 8403, 2.3 mil (0.06 mm) polyester film tape with green pigmented silicone adhesive.
3M™ Polyester Tape 8403, masking for high temperature applications, adheres well to silicone coated surfaces. The green color and silicone adhesive make for easier identification and application when splicing silicone treated paper.
| SKU | TS0002 |
|---|---|
| GTIN, UPC, EAN o ISBN | 50021200614588 |
| Manufacturer | 3M |
| Manufacturer Code | 7000048534 |
| Weight | 1 kg |
| Color | Green |
| Width (mm) | 25 |
| Length (m) | 66 |
| Thickness (mm) | 6 |
| Diameter (mm) | |
| Volume (liters) | |
| Notes | Product Description 3M™ Polyester Tape 8403 has a silicone adhesive for composite bonding and splicing of many silicone coated papers and films. Technical Data July, 2007 ASTM Test Method Adhesion to Steel: 27 oz./in. width (29 N/100 mm) D-3330 Tensile Strength at Break: 46 lbs./in. width (806 N/100 mm) D-3759 Elongation at Break: 150% D-3759 Backing Thickness: 1.4 mils (0.04 mm) D-3652 Total Tape Thickness: 2.4 mils (0.06 mm) D-3652 Temperature Use Range: Removes cleanly and remains flexible after 3 hours, 350°F (177°C), in autoclave. Product Construction Backing Adhesive Color Standard Roll Length Polyester film Silicone Translucent green 72 yds. (66 m) Typical Physical Properties Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes. Application Ideas • Masking edges overlap seams in metal bonding process where the excess epoxy (“flash”) flows onto the tape. Clean-up is complete when the tape is removed. • Protective overall mask on panels to mild caustic or acid bath etching. Helps prevent scratches during handling and provides desired masking during metal bonding and fabrication. • Holding of parts or vacuum bags during bonding process. • Mask for metal in acid or caustic chemical milling baths. • Masking parts in anodizing processes. • Splicing of silicone coated papers and films. • Paint masking of materials subjected to high temperatures |
