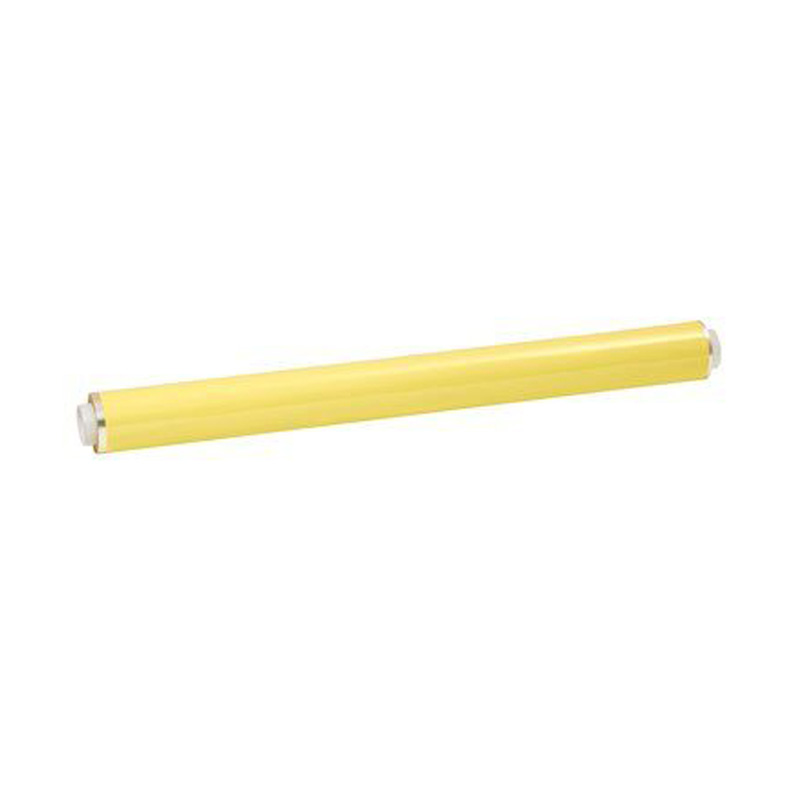

3M 1350F-1 Tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510.
It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating.
It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.
Features :
– Backing : Polyester
– Color: Yellow
– Adhesive: Acrylic
– Backing thickness: 0.025 mm
– Total thickness: 0.06 mm
– Adhesion to steel: 3.3 N/10mm
– Elongation at break: 75 %
– Range of use: -50 °C / +130 °C
– Dielectric Breakdown: 5000 V
– UL510 recognition
Applications :

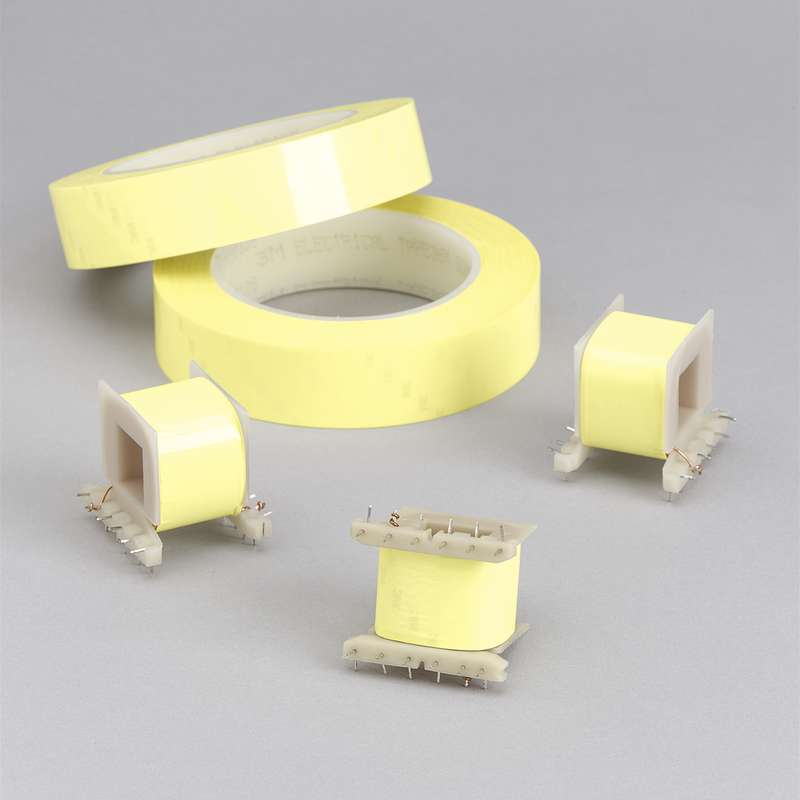

3M 1350 Tape is especially suited for applications such as wrapping coils, capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors.
