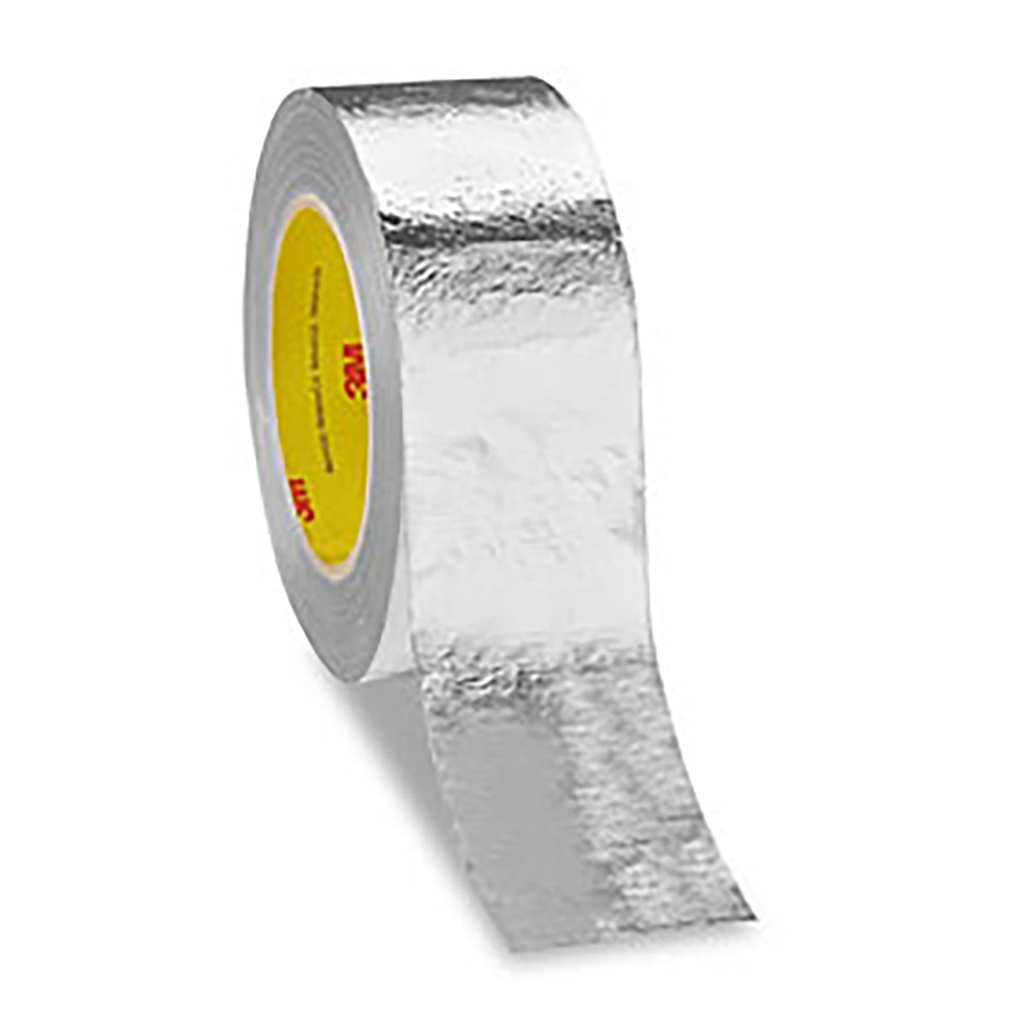

3M™ High Temperature Aluminum Foil/Glass Coth Tape, aluminum foil backing combined with a glass cloth and pressure sensitive silicone adhesive
3M™ High Temperature Aluminum Foil/Glass Cloth Tape is a strong, flexible tape that can be used as a high temperature heat reflective, protective wrap for heat sensitive cables and other instruments in many aerospace and industrial applications.
Discounted Price
Regular Price
Per piece/roll (excl. VAT)
3M™ High Temperature Aluminum Foil/Glass Coth Tape, aluminum foil backing combined with a glass cloth and pressure sensitive silicone adhesive
3M™ High Temperature Aluminum Foil/Glass Cloth Tape is a strong, flexible tape that can be used as a high temperature heat reflective, protective wrap for heat sensitive cables and other instruments in many aerospace and industrial applications.
| SKU | TS0065 |
|---|---|
| GTIN, UPC, EAN o ISBN | 00021200172953 |
| Manufacturer | 3M |
| Manufacturer Code | 7000028867 |
| Weight | 1 kg |
| Color | Silver |
| Width (mm) | 50 |
| Length (m) | 33 |
| Thickness (mm) | 15 |
| Diameter (mm) | |
| Volume (liters) | |
| Notes | 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 can be used as a high temperature, heat reflective, protective wrap for certain cables and other components in aerospace and industrial applications. Product Construction Backing Adhesive Color Liner (3M tape 363L) Standard Roll Length Aluminum foil Silicone Shiny silver Transparent, 36 yds. (33 m) laminated to (transparent) easy-release film glass cloth Features • Can easily be die-cut into special sizes or shapes. • Light, flexible construction – easily applied to a variety of irregular shapes. • Performs continuously from -65°F (-54°C) to 600°F (316°C). • Meets the requirements of F.A.R. 25.853(a). • Best results obtained when applied to a clean dry surface above 32°F (0°C), but can be applied at lower temperatures. Typical Physical Properties ASTM Test Method Adhesion to Steel: 52 oz./in. width (57 N/100 mm) D-3330 Tensile Strength: 135 lbs./in. width (2364 N/100 mm) D-3759 Elongation at Break: 7% D-3759 Backing Thickness: Foil: 1.0 mil (0.025 mm) D-3652 Glass Cloth: 2.4 mils (0.06 mm) Total Tape Thickness: 7.3 mils (0.19 mm) D-3652 Liner Thickness: 2 .0 mils (0.05 mm) D-3652 (3M tape 363L) Temperature Use Range: -65° to 600°F (-54 to 316°C) Weight: 0.0114 lbs./yd./in. width (0.0057 kg/m/24mm) Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes. Application Ideas • A heat reflective wrap, over insulation cables, instruments, or other high temperature sensitive materials. |
